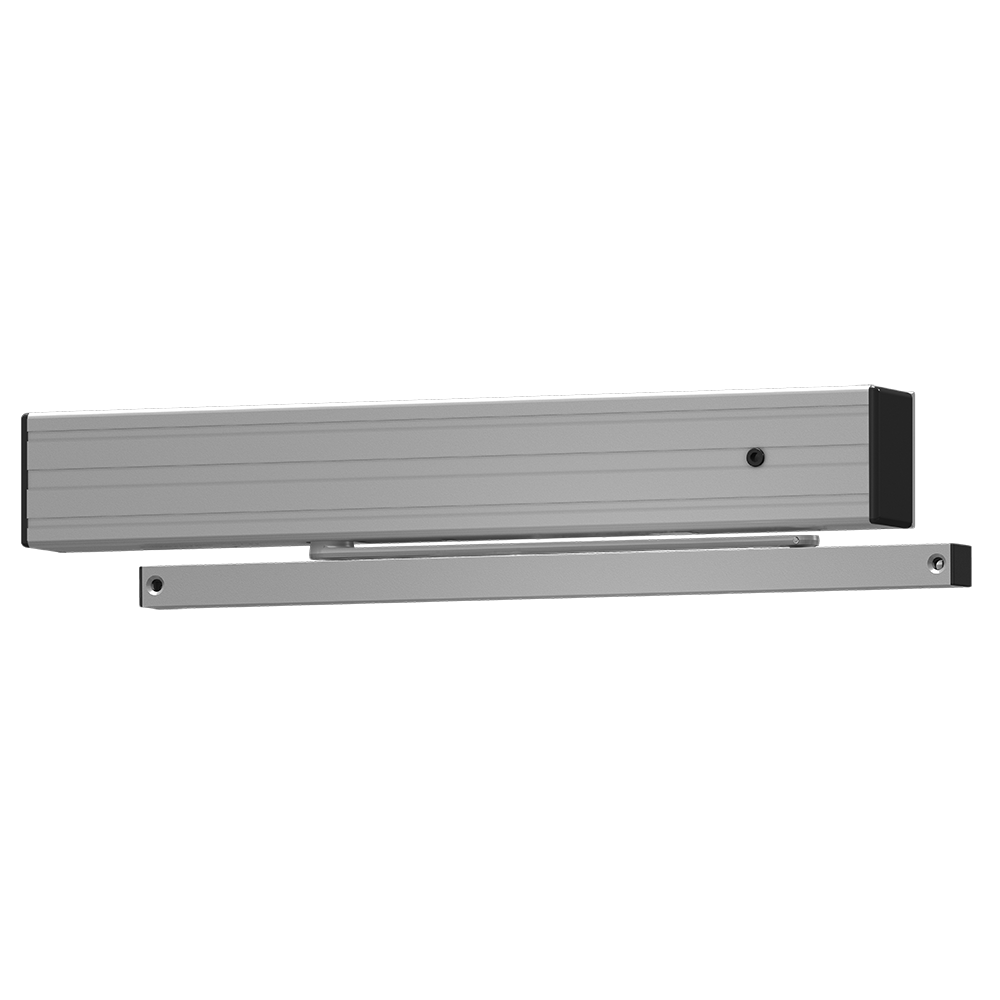

4310HSA / 4410HSA Sentronic® Series Closers

These electrically controlled closers/holders are designed to provide easy passage through high traffic doors. They feature a scanner-activated hold-open function, with an adjustable hold-open period.


Looking for more information? Connect with an Allegion team member for help.


The 4310HSA and 4410HSA Series closers/holders meet ANSI/BHMA A156.15 and NFPA 101 Life Safety Code standards, and come with a 2-year warranty. The closers/holders are designed to integrate with existing fire and life safety systems, minimizing danger to life and property under fire conditions. The closers function as full rack-and-pinion door closers when the hold-open function is not engaged or the electrical current is interrupted. The 4310HSA and 4410HSA Series closers/holders are surface mounted and include a choice of finishes and accessories to meet virtually all high traffic installation requirements.

Pedestrians trigger the built-in HSA scanner by moving through the doorway. When the door is opened to 80° or more, the electrical hold-open takes over, minimizing everyday hardware damage. When the last pedestrian is through the door, the system timer releases the hold-open, closing the door with the heavy-duty closer.

Cast Iron


Surface Mounted

Body Construction

  • Utilizes heavy-duty cast iron closer
  • Built-in “On/Off” switch
  • Full-complement bearing

Quality and Durability

  • All-weather fluid
  • 2-year warranty
  • Adjustable hold-open period, up to 30 seconds


  • Wood and machine screw pack
  • Standard metal cover
  • Sized adjustable spring power sizes 1-6
  • Handed design
  • Non-sized spring force
  • Multi-point hold-open function
  • Sized cylinders for interior doors up to 4’6”
  • Standard or optional custom powder coat finish
  • Optional plated finish on metal cover, arm and fasteners
  • The 4310HSA Series mounts surface mount on high (pull side) with single lever track arm.
  • The 4410HSA Series mounts surface mount on top jamb (push side) with double lever regular arm.

Visit the 4310HSA/4410HSA Series catalog pages for mounting details, arm options and accessories.
