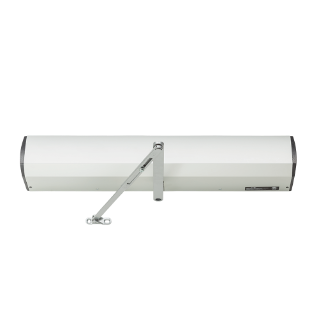

9130 / 9140 / 9150 Benchmark Series Operators

The Benchmark Series operators are low-energy electromechanical operators designed for primarily automatic openings that sometimes require manual opening.



Looking for more information? Connect with an Allegion team member for help.

Overview

The Benchmark low-energy operators are electrically powered and are cost-effective for retrofitting an activated or manual door. The 9130, 9140, and 9150 Series meet ANSI/BHMA A156.19 and ANSI A117.1 standards, are American Disabilities Act (ADA) compliant, UL-listed and feature a 2-year limited warranty.

The operators feature a Push ‘N Go activation, providing easy access for people with disabilities and the elderly. The Push ‘N Go feature takes over when a pedestrian manually opens the door to five degrees, then holds the door fully open for 1-30 seconds, depending on the time delay. Power Boost provides additional closing force in severe wind.

Automatic Operator

Electromechanical

Low Energy

Surface Mounted

  Medium Duty

Body Construction

  • Microprocessor control box maintains customer settings
  • Standard on/off switch
  • LED lights to indicate power to control box and motor gearbox

Quality and Durability

  • 2-year warranty
  • Power Boost allows for increased closing force near latch
  • Push ‘N Go permits non-switch activation

Installation

  • Wood and machine screws
  • Special templates available via Product Support
  • Non-handed for left- or right-swinging doors
  • Meets ADA requirements (power mode)
  • Metal cover is standard; full-length covers are available
  • All potentiometers are clearly labeled with functions
  • Standard anodized finish
  • Standard metal cover
  • The 9130 Series mounts surface mount on pull side with a single lever track arm.
  • The 9140 Series mounts surface mount on push side with a double-lever arm.
  • The 9150 Series mounts surface mount on top jamb (push side) for independent/simultaneous pair.

Visit the 9130/9140/9150 Series catalog pages for mounting details, arm options and accessories.
