8310 Series Actuators, Sensors and Accessories

Allegion offers the 8310 Series touchless actuators as part of its auto operator solutions. A pedestrian simply waves their hand in front of the wall plate. The technology senses the motion and acknowledges intent to enter. No contact with an actuator, door handle, push bar, or door is required.



Looking for more information? Connect with an Allegion team member for help.

Overview

To promote health and well-being, many facilities are now replacing traditional push buttons with  touchless actuators. When a pedestrian waves his or her hand in front of the wall plate, the technology senses the motion and acknowledges intent to enter. No contact with an actuator, door hand, push bar or door is required.



Healthy Openings

Heavy Duty Touchless Actuators

  • Flush mounted design: aesthetically pleasing and less susceptible to accidental damage
  • Stainless steel construction: for rugged performance in harsh environments
  • IP65 rated: to protect electronic components from water and cleaning liquids
  • Customizable features: Visual and audible signaling

Standard Touchless Actuators

  • Flush mounted design: aesthetically pleasing and less susceptible to accidental damage
  • Silent activation: ideal for applications that seek to limit noise emission
  • Variety of colors and form factors: available in black or white for single gang, double gang, jamb and round mounting styles
  • Single and double gang face plates ship as pair

Close Proximity Touchless Actuators

  • Short-range detection zone: reduces unwanted activation
  • Flush mounted design: aesthetically pleasing and less susceptible to accidental damage
  • Feedback: includes illuminated edges and audible signaling
  • Learn cycle: simplifies setup

Harsh Conditions Touchless Actuators

  • NEMA 4/IP65 rated enclosure: for rugged and durable performance
  • Designed for harsh environments: including outdoor applications
  • Customizable detection zone: for flexibility and ease of use

Battery Powered touchless actuators

  • Battery-powered solutions to simplify touchless actuator installation and retrofit upgrades
  • Various form factor options for a variety of applications
  • Compatible with existing LCN transmitters and receivers
  • AA battery powered
  • Can be used in conjunction with RF devices for a completely wireless experience
  • 8310-2210 kitted option available with all necessary components included and RF hardware pre-programmed

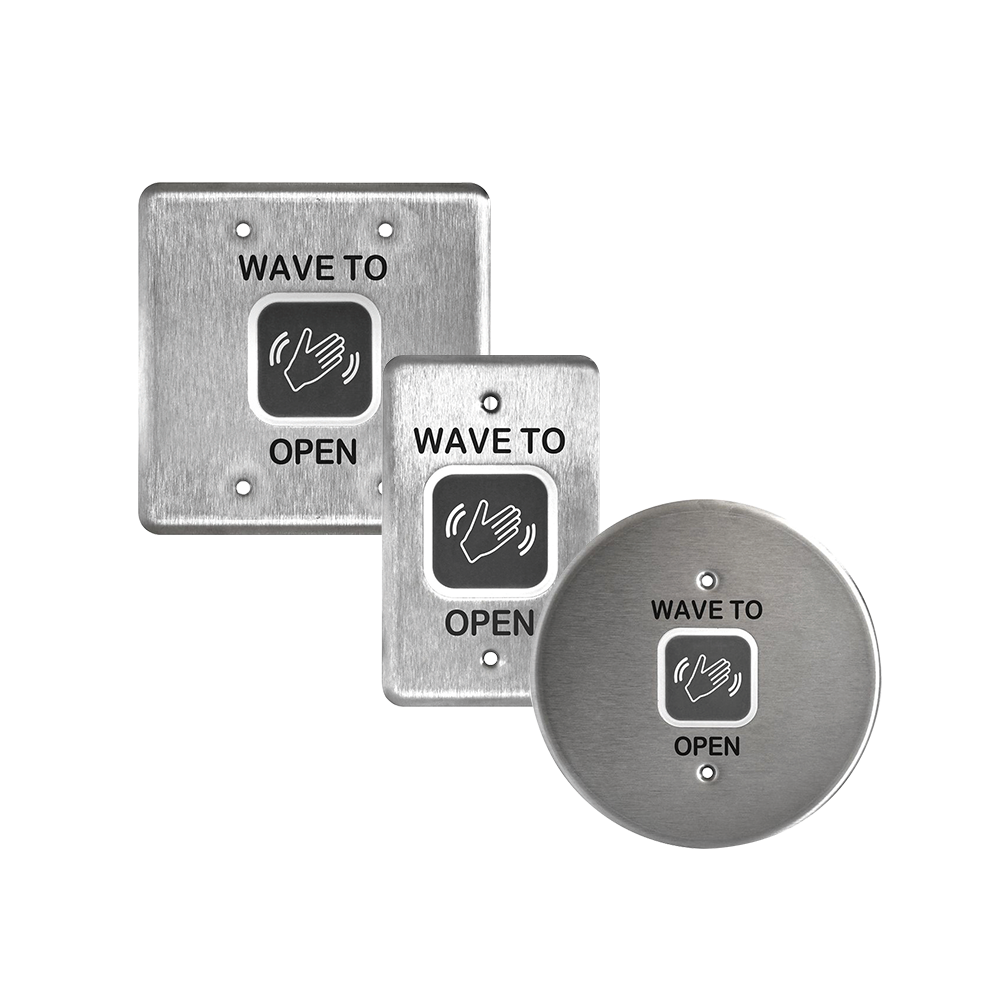

Hardwired heavy duty touchless actuators

The LCN 8310-810 series of stainless-steel actuators are designed for high use and abuse environments.

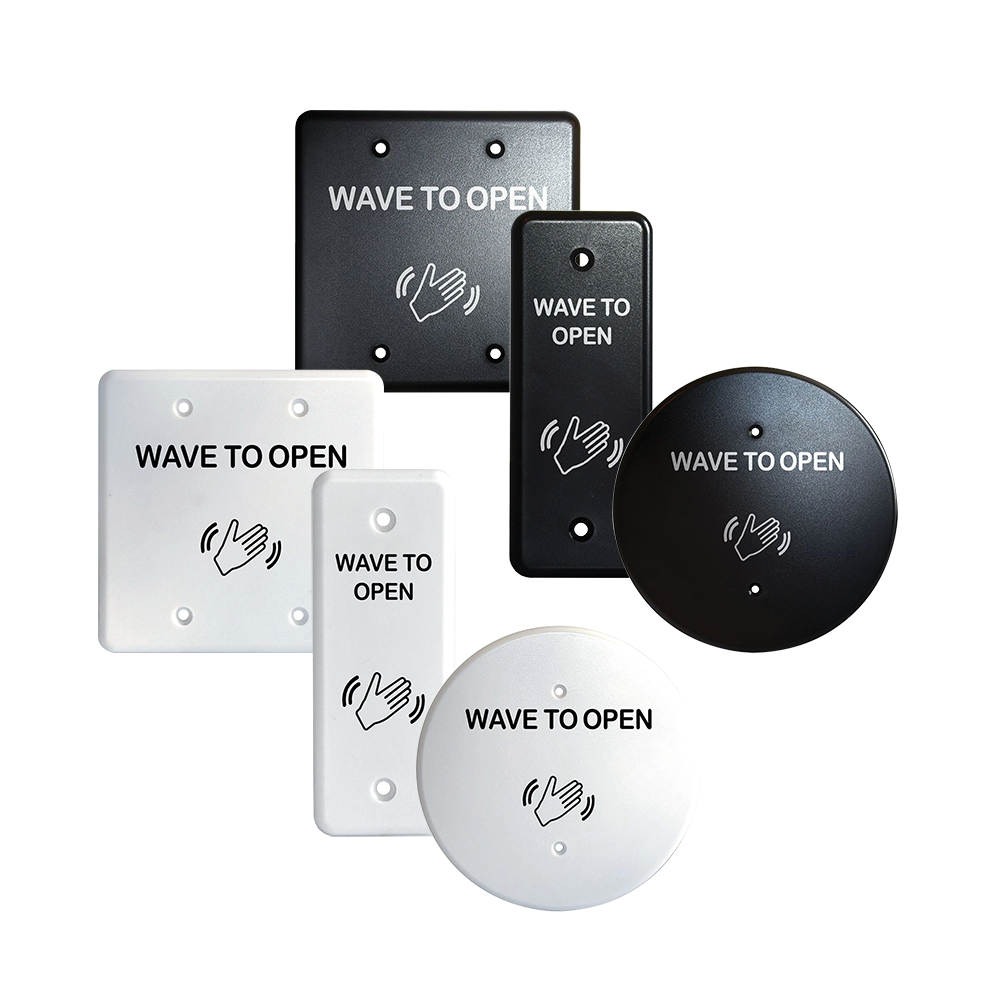

Hardwired standard touchless actuators

The LCN 8310-813 series of touchless actuators is designed for standard, medium-duty applications.

Hardwired close proximity touchless actuators

The LCN 8310-816 series of close-proximity actuators feature stainless steel construction ideal for high use and abuse environments.

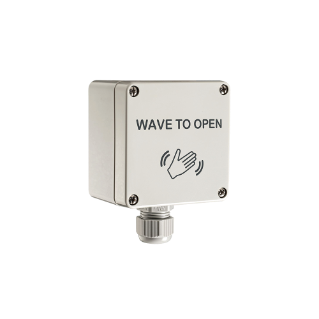

Hardwired harsh conditions touchless actuators

The LCN 8310-815 is designed for harsh environments and features an IP65 rated enclosure for rugged and durable performance.

Battery powered touchless actuators

The 8310-2210 is a packaged kit that ships with all necessary RF hardware, pre-programmed. The 8310-2310, 2320, 2330, and 2340 are single faceplates that are compatible with the existing LCN transmitters and receivers. All are AA battery powered and can be used in conjunction with RF devices for a completely wireless experience.

900 MHz receiver and transmitters

The LCN 8310-880 is a compact, long-range transmitter that complies with federal radio frequency regulations. The power draw of 30mA (transmitter)/40mA (receiver) allows for greater distance transmission. The 900 MHz transmitter is compatible with LCN’s touchless actuation offerings. Without this solution, all touchless actuation plates will need to be hardwired into the operators’ actuation inputs.

433 MHz receiver and transmitters

The LCN 8310-865 is a compact, receiver that complies with federal radio frequency regulations and is designed to receive signals through barriers. The 433 MHz portfolio is compatible with LCN’s touchless actuation offerings and can be used as an alternative to hardwiring an actuator.
