3030/3130 Series Closers

These closers use single- and double-lever arms for smooth door control while being completely concealed in interior doors.


Looking for more information? Connect with an Allegion team member for help.


The 3030/3130 Series closers are designed for concealment within 1-3/4” interior doors in medium- to high-traffic areas. Both closer series meet ANSI/BHMA A156.4 Grade 1 and the American Disabilities Act (ADA) reduced opening force requirements. A concealed forged steel single-lever arm and a low-friction track and roller assembly for the 3130 Series and an exposed forged steel double-lever arm for the 3030 Series create optimal door control, with separate regulation of the general closing speed and latching speed. Joints in the 3030 Series arm and shoe adapt to uneven trim.

Both the 3030 and 3130 Series are UL and cUL listed for self-closing doors without hold-open and carry a 15-year limited warranty. Materials for the closers include a cast iron cylinder; one-piece forged steel piston; high-efficiency, full-complement, low-friction bearing; tamper-resistant regulating screws; and all-weather fluid.

Concealed Mounted

  Medium Duty

Body Construction

  • Cast iron design
  • 1-1/8” diameter forged steel piston
  • Full-complement bearing

Quality and Durability

  • All-weather fluid
  • Forged steel arm
  • 15-year warranty


  • Handed design
  • Wood and torx security screws
  • For the 3030 Series, adjustable spring sizes 1-3; for the 3130 Series, adjustable spring sizes 1-4
  • Tested and certified under ANSI/BHMA A156.4 Grade 1
  • UL and cUL listed with regular arm for self-closing doors
  • Meets ADA requirements
  • Sized cylinders for interior doors to 4’0”
  • Optional plated finish on arm and fasteners
  • Handed for right- and left-swinging doors
  • Standard or optional custom powder coat finish
  • Optional plated finish
  • Optional SRI primer for installations in corrosive conditions available with powder coat only
  • The 3030 Series mounts in the door with an exposed arm.

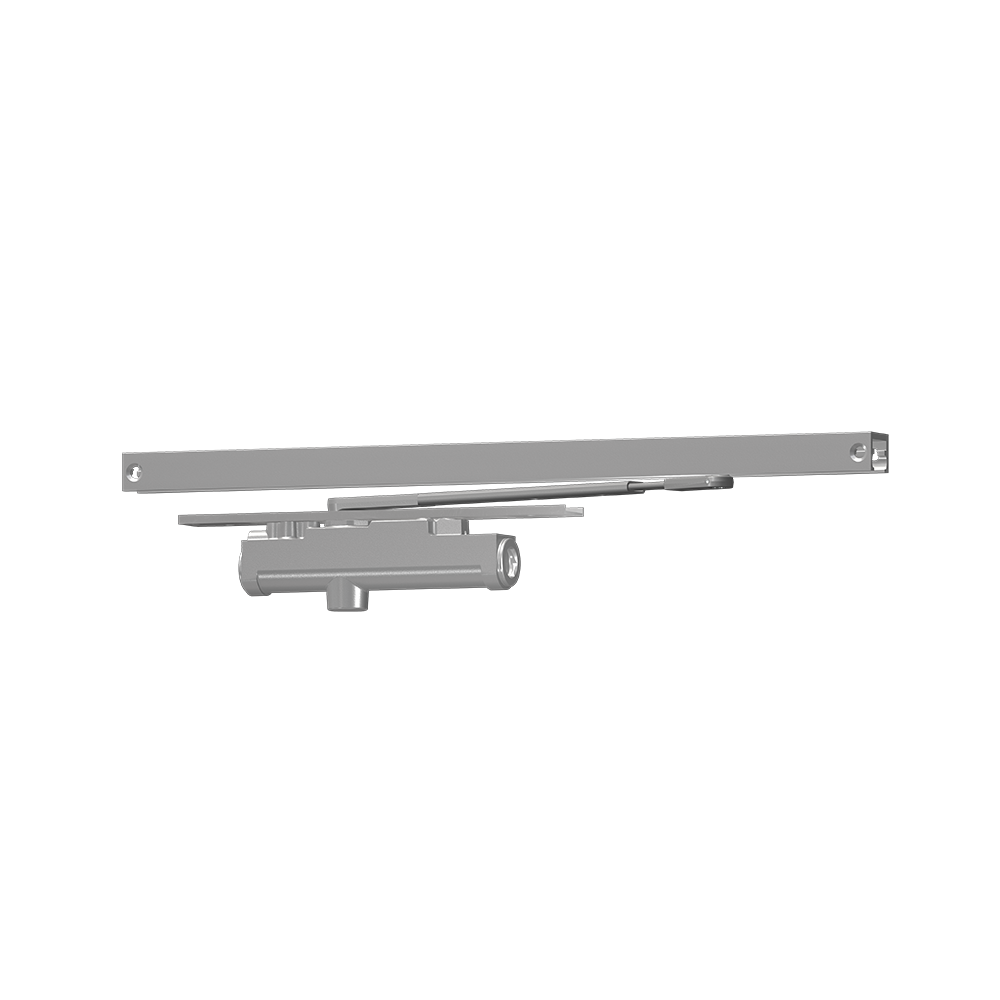

  • The 3130 Series mounts in the door with a concealed arm.

Visit the 3030/3130 Series catalog pages for mounting details, arm options and accessories.
